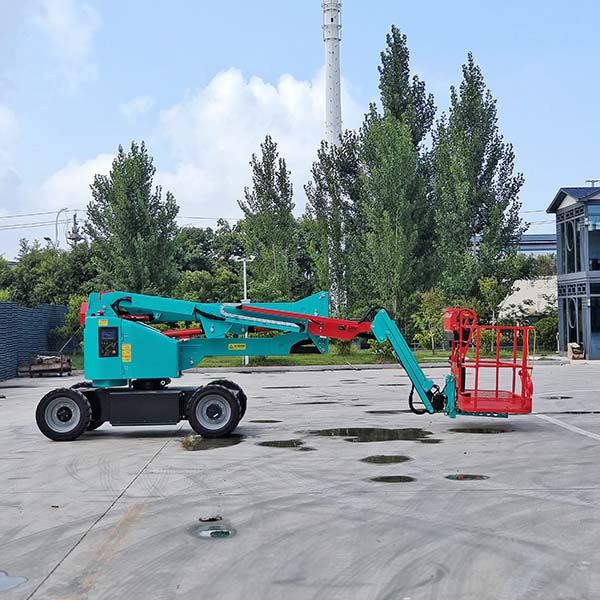

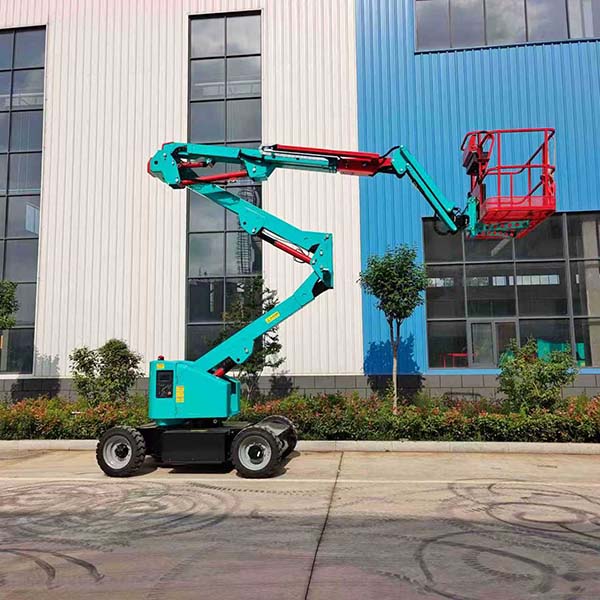

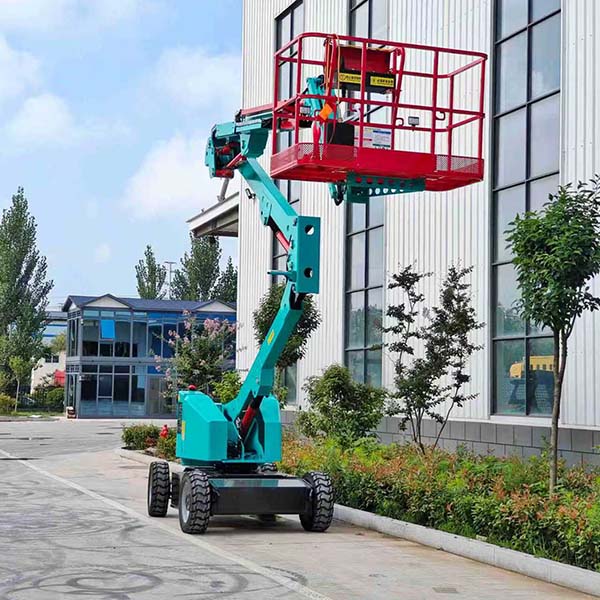

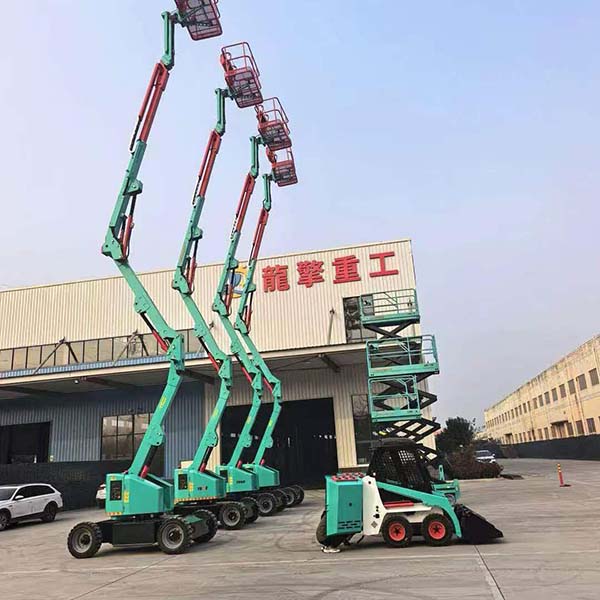

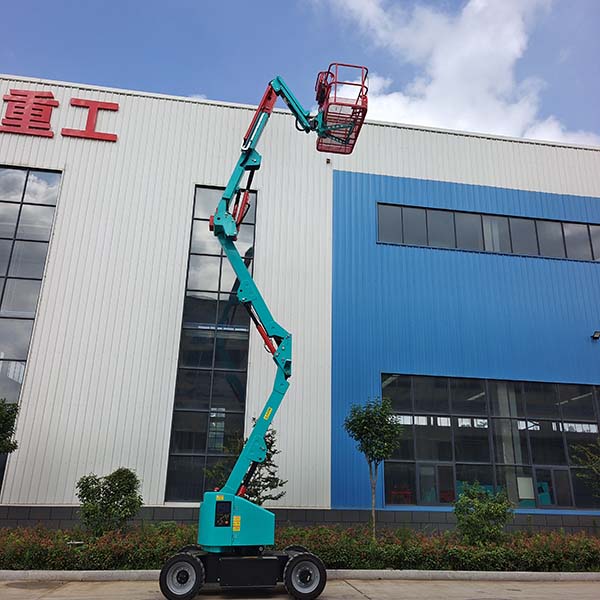

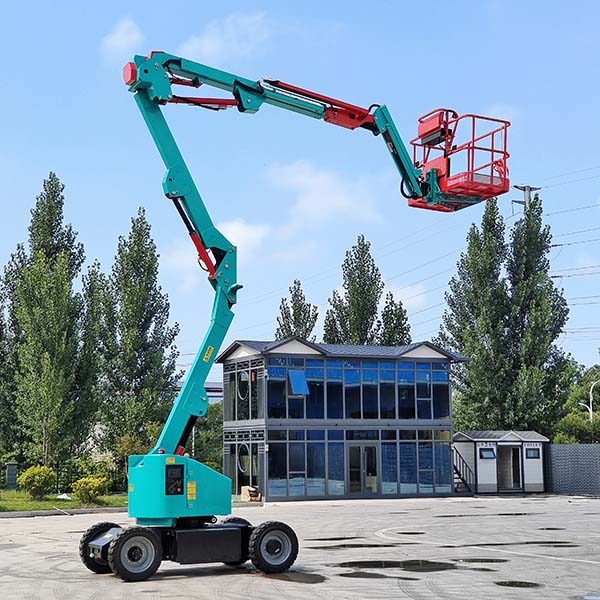

曲臂式自行走高空作业平台
- 型号 MODEL TB16E TB16EP 最大工作高度 Maximum working height 16m 16m 最大平台高度 Maximum platform h
产品详情
| 型号 MODEL | TB16E | TB16EP |
| 最大工作高度 Maximum working height | 16m | 16m |
| 最大平台高度 Maximum platform height | 13.7m | 13.7m |
| 最大水平延伸 Maximum horizontal extension | 7.4m | 7.4m |
| 最大跨越高度 Maximum clearance height | 7.5m | 7.5m |
| 平台长度 Platform length | 0.92m | 0.92m |
| 平台宽度 Platform width | 1.8m | 1.8m |
| 整机高度（收起）Overall height (retracted) | 2m | 2m |
| 整机长度（收起）Overall length (retracted) | 6.6m | 6.6m |
| 整机宽度 Overall width of the machine | 1.75m | 1.75m |
| 轴距 Wheelbase | 2m | 2m |
| 离地间隙 Clearance from the ground | 0.22m | 0.22m |
| 最大承载能力 Maximum carrying capacity | 230kg | 230kg |
| 平台旋转 Platform rotation | ±90° | ±90° |
| 转台回转 Turntable rotation | 355° | 355° |
| 工作平台起升速度 Raise time | 85~100s | 85~100s |
| 工作平台下降速度 Lower time | 70~85s | 70~85s |
| 最高行驶速度（收起）Maximum driving speed (retracted) | 5 km/h | 5 km/h |
| 最高行驶速度（举升）Maximum driving speed (extended) | 0.8 km/h | 0.8 km/h |
| 爬坡能力（两驱）Cliff climbing ability (two-wheel drive) | 0.3 | 0.3 |
| 工作时允许倾角 Allowable working inclination angle | 5° | 5° |
| 轮胎 (填充胎) Tires (inflated) | 240/55D17.5 | 240/55D17.5 |
| 驱动 × 转向 Drive × Steering | 2WD×2WS | 2WD×2WS |
| 电池规格 Battery specifications | 48V/314Ah（锂电 Lithium battery） | 48V/450Ah（锂电 Lithium battery） |
| 充电器 Charger | 48v/50A | 48v/50A |
| 工作电压 Working voltage | 12V DC | 12V DC |
| 液压油箱 Hydraulic oil tank | 20L | 20L |
| 重量 Weight | 6650kg | 6650kg |
| 型号 | TB11E | TB12E | TB14E | TB18E | TB20E | TB22E |
| 最大工作高度 Maximum working height | 11.5m | 12.52m | 14.2m | 17.7m | 20.2m | 22.5m |
| 最大平台高度 Maximum platform height | 9.5m | 10.52m | 12.2m | 15.7m | 18.2m | 20.5m |
| 最大水平延伸 Maximum horizontal extension | 4.5m | 4.65m | 6.5m | 8.9m | 11.1m | 11.8m |
| 最大跨越高度 Maximum clearance height | 6.2m | 6.5m | 6.2m | 7.3m | 8.0m | 9.4m |
| 平台长度 Platform length | 1.4m | 1.4m | 1.2m | 1.4m | 1.8m | 1.8m |
| 平台宽度 Platform width | 0.7m | 0.7m | 0.7m | 0.76m | 0.76m | 0.76m |
| 整机高度（收起）Overall height (retracted) | 2.0m | 2.0m | 1.98m | 2.0m | 2.38m | 2.38m |
| 整机长度（收起）Overall length (retracted) | 5.2m | 5.6m | 5.6m | 7.2m | 8.49m | 8.99m |
| 整机宽度 Overall width of the machine | 1.27m | 1.50m | 1.68m | 1.90m | 2.49m | 2.49m |
| 轴距 Wheelbase | 1.75m | 1.95m | 2.00m | 2.0m | 2.5m | 2.5m |
| 离地间隙 Clearance from the ground | 0.14m | 0.14m | 0.25m | 0.25m | 0.3m | 0.3m |
| 最大承载能力 Maximum carrying capacity | 200kg | 200kg | 230kg | 230kg | 230kg/350kg | 230kg/350kg |
| 平台旋转 Platform rotation | ±80° | ±80° | ±70° | ±80° | ±80° | ±80° |
| 转台回转 Turntable rotation | 355° | 355° | 355° | 355° | 360° 连续 | 360° 连续 |
| 最高行驶速度（收起）Maximum driving speed (retracted) | 4.8Km/H | 4.8km/h | 5km/h | 5.0km/h | 4.8km/h | 4.5km/h |
| 爬坡能力（两驱）Cliff climbing ability (two-wheel drive) | 35% | 35% | 30% | 30% | 45% | 40% |
| 工作时允许倾角 Allowable working inclination angle | 3° | 3° | 3° | 3° | 3° | 3° |
| 轮胎 (填充胎) Tires (inflated) | 22x7x17 | 27x7x17 | 28*9-15 | 250-15 | 33×12-20 | 33×12-20 |
| 驱动 × 转向 Drive × Steering | 2×2 | 2×2 | 2×2 | 2×2 | 4×2 | 4×2 |
| 电池规格 Battery specifications | 48V/320Ah | 48V/320Ah | 48v(220Ah) | 48V/320Ah | 48V/420Ah | 48V/420Ah |
| 充电器 Charger | 48V/35A | 48v/35A | 48V/20A | 48V/35A | 48V/60A | 48V/60A |
| 工作电压 Working voltage | 24V | 24v | 25v | 27v | 28v | 24V |
| 液压油箱 Hydraulic oil tank | 20L | 20L | 20L | 45L | 105L | 105L |
| 重量 Weight | 4800kg | 4800kg | 4320kg | 6630kg | 9100kg | 10000kg |
